Solving a corn puzzle with CP-SAT

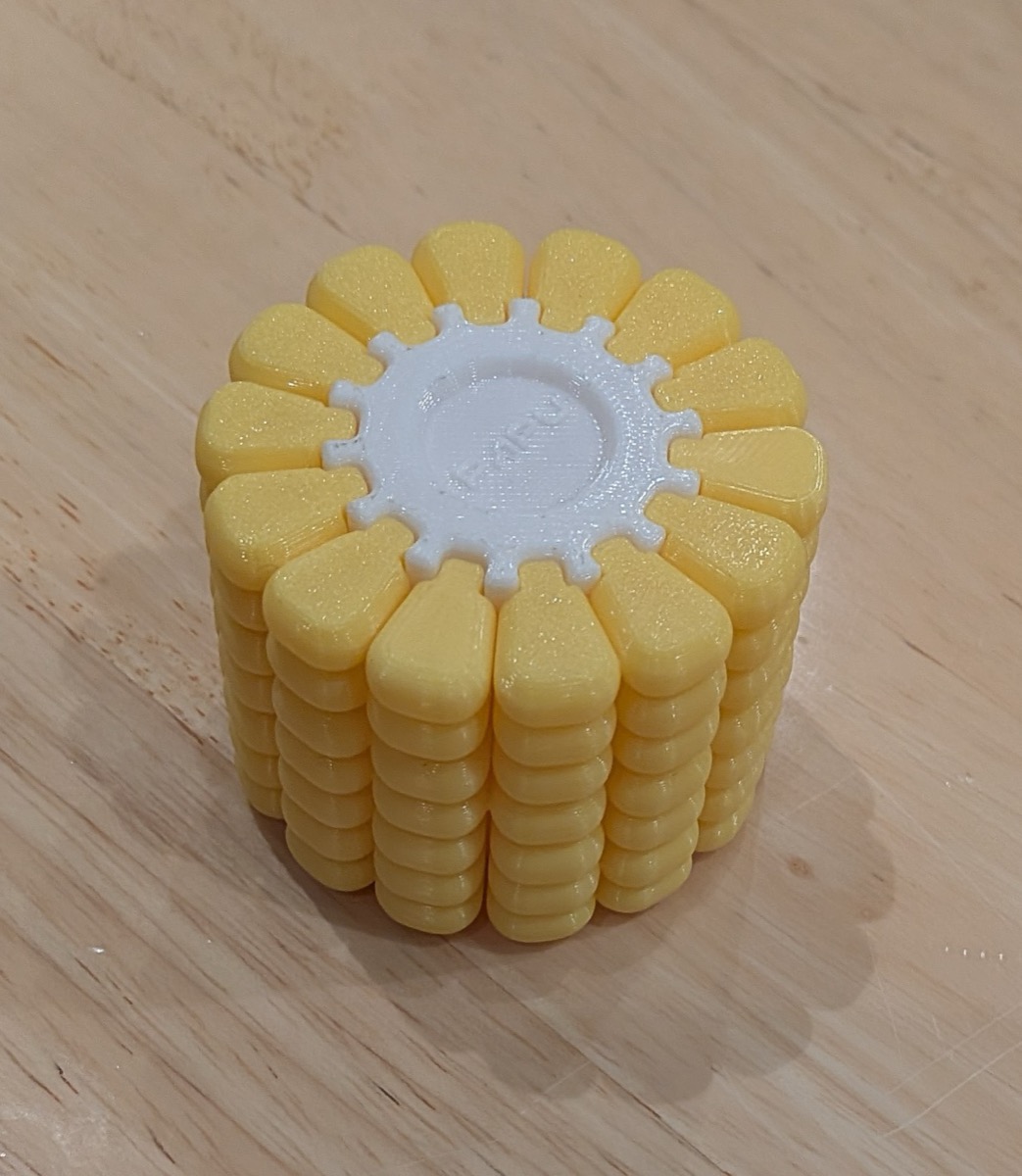

One random Friday at RC, I was bored and playing around with a puzzle someone had 3d printed:

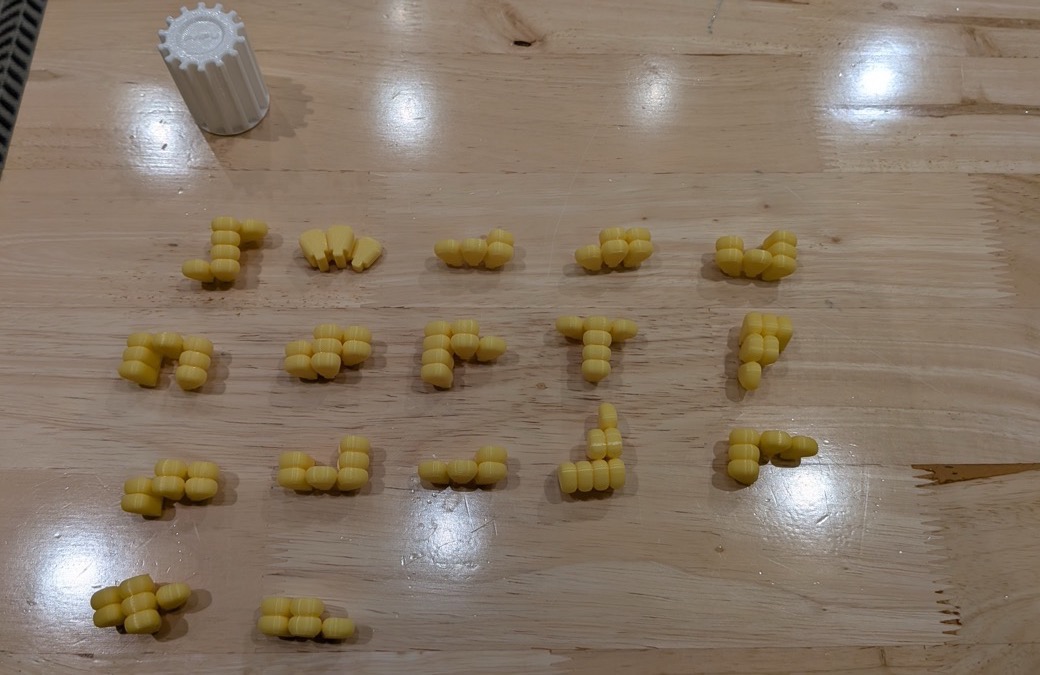

It’s a physical puzzle consisting of a white “cob” with grooves in it and a bunch of “corn” pieces, each made of 3-10 kernels stuck together in a particular shape, that can slide into the grooves. The goal is to slide them on so that they fit together exactly, with no overlaps and no gaps.

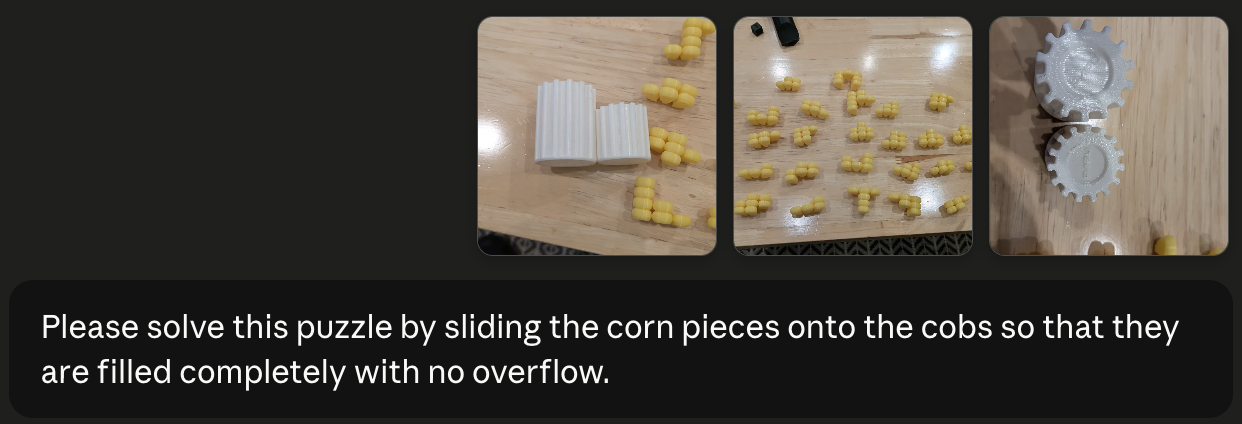

Like all software engineers in the year of our lord 2026, I quickly got tired of solving the puzzle myself and asked Claude to do it for me:
After a little bit of wrangling - it turns out computer vision isn’t quite that good yet, so I had to clarify some of the piece shapes - Claude wrote a script in python that gave a solution.
It was much better than I would have written myself, and I ended up learning from it.
What I expected
If I was solving this problem myself, I would naively reach for recursive backtracking. If you’re a programmer, you’ve probably seen this algorithm in an intro CS class.
Basically, it’s the brute force approach - try something at random, then try something else, keep going until the puzzle is solved. If you ever get stuck and there are no legal moves left, undo your last move and try again from there. If all moves from that point fail, undo another move, and so on.
This is just an organized way of trying all the options, and it does admit some nice optimizations based on the structure of the problem. For example, you can take into account the symmetry that rotating the cob doesn’t change the solution in any way, or fail early if you ever isolate a single kernel space on its own (so that no piece can cover it). So a well thought-out approach to backtracking would likely work.
However, when I looked at Claude’s script I realized from the first line that I was being dumb:
from ortools.sat.python import cp_model
This wheel has already been invented
Instead of backtracking, Claude just imported an industrial-strength library made to solve these sorts of problems. OR-Tools CP-SAT is put out by Google and is made for solving constrained optimization problems, as well as satisfiability problems like this one.
The idea here is to model any such problem as a set of variables - classically binary - and a set of constraints or assertions about those variables that all have to be simultaneously satisfied. (As well as an objective function, for optimization problems.) Then the library draws on many decades of research to efficiently find a setting for those variables that meets all of the constraints.
The corn problem is a variant of the Exact Cover problem, so those in the know can probably already see how it would be represented, but I’ll go through it as it was new to me.
The variables in this problem are binary - true or false - and each one represents the idea “X piece is placed in a particular way”. So for each of $N_i$ ways that piece $i$ could be placed, we have one variable $V_{i,n}$, which is true ($1$) if the piece is placed there, false ($0$) if it isn’t.
Constraint class 1: All pieces are placed exactly once
This part is easy - for each piece $i$, we have
$ \sum_{n=1}^{N_i} V_{i,n} = 1 $
This enforces that exactly one of the \(V_{i, n}\) variables is $1$, and the rest are $0$.
Constraint class 2: Each spot is covered exactly once
This is a little harder, but just tedious, not confusing. For each piece placement we have to go through all of the spaces on the cob that it covers and add it to the set of covering pieces $C_s$. Then for all spaces $s$ on the cob, we have a very similar looking constraint:
$ \sum_{V_{i,n} \in C_s} V_{i,n} = 1 $
So every piece is used once, and every spot is covered once. If we assume that this is a well constructed puzzle - so the total number of kernels in the pieces is equal to the number of spaces on the cob - this is all the constraints we need!
Claude’s python script to solve this was pretty complicated because it had to actually enumerate all the possible positions of all the pieces, but actually invoking the solver was very straightforward:
for plist in by_piece:
m.Add(sum(v for v, _ in plist) == 1)
for clist in by_cell:
m.Add(sum(clist) == 1)
# ...
s.solve(m)
An artisanal hand-crafted CP-SAT invocation
To learn more about this and try to lock in the lesson not to reinvent the wheel, I got together with Zaki and Tommy at recurse to do what is probably the most classic application of cp-sat to a puzzle, Sudoku.
This is a classic beginner application of the tool and easier to apply than for the corn puzzle; we simply have one variable per cell, with a value 1-9, and our constraint classes are that every row, column, and box has to have one of each. We don’t need to have utility methods for setting this up, as the corn puzzle did for rotating pieces:
model_vars = [ [ None for _ in range(9) ] for _ in range(9) ]
for i in range(9):
for j in range(9):
board_var_name = f"s[{i},{j}]"
if board[i][j] == -1:
model_vars[i][j] = model.new_int_var(1, 9, board_var_name)
else:
# for given values, there's only one legal value for the variable
model_vars[i][j] = model.new_int_var(board[i][j], board[i][j], board_var_name)
# rows
for r in range(9):
model.add_all_different( [ model_vars[r][c] for c in range(9) ] )
# columns
for c in range(9):
model.add_all_different( [ model_vars[r][c] for r in range(9) ] )
# boxes
for off_r in range(3):
for off_c in range(3):
model.add_all_different( [
model_vars[3*off_r + numpad % 3][3*off_c + numpad // 3]
for numpad in range(9) ] )
This indeed solved a reference sudoku we gave it, quickly.
There’s a lot more left to learn about these, but we’ve now learned the most important thing - when I get another cp-sat shaped problem in the future, I’ll know to try a solver and read the docs for whatever else I need, rather than roll my own.
Links
The conversation with claude about solving the corn puzzle (with claude’s python script)
